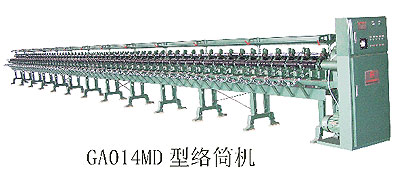

| GA014MD Cone Winding Machine |
| Post Date :2008-04-11 |
| Expire Date :2009-04-11 |
 View Basket |
| Detailed Trade Lead Description |
Purposes: This machine is mainly applicable to the winding of cotton, wool yarn, chemical chopped fiber and blended yarns, and is used to wind cops into cheese yarns on cones before they are applied to the processes such as warping, knitting and yarn combining etc..
Main technical data:
-Model: Double-side chute barrel type
-Number of spindles of each set: 40, 60, 80, 100 and 120 (with 100 as the standard number of spindles for each machine)
-Spindle gauge: 254mm
-Guide bar travel: 152mm
-Winding speed: 510, 575, 643 and 713 meters/minute
-Bobbin: wooden pipe′s obliquity is 6°, Φ25/Φ62×177mm
Paper pipe′s obliquity is 3° 30′, 5°57°, 9°15″
-Forming size:Φ200 (big head) ×152mm (length)
-Grooved drum specification: The bakelite drum or metal grooved drum with a diameter of Φ82.5mm and 2.5 circles of folding-resist grooved drums are provided for selection of users;
-Yarn-break auto-stop device: Each spindle has an independent set of auto-stop device.
-Tension device: Each spindle has a set of tension spacer (which is divided into light, medium and heavy types).
-Thread cleaning device: Popular type electronic yarn cleaner can be equipped.
-Blank-pipe conveyer device: It is equipped at the left and rights sides of the machine, and is used to convey blank pipes from the head to the rear of vehicles.
-Folding-resist device: Electronic contactless intermittent switch is set inside the electric switch box to make the rotating speed of the electromotor welter at its turning on and off in rotation. The intermittent time can be adjusted according to the speed of yarn counts. Also, electronic display is set in this device.
-Length counting device: Electronic length counting device could be equipped.
-Yarn-supply shelf: Insert rod of spun yarn tube could be equipped.
-Cop joint device: Air splicer (or knotter) could be selected.
-Cleaning device: GUO13A type to-and-fro blowing cleanser could be installed at the machine.
-Operation mode: GUO12 type dollies could be equipped at both sides of the machine for convenient operation of workers.
-Specification of electromotor: Main electromotor, 1.8Kw, 380V, and 1440 revolutions per minute, 2 sets.
Auxiliary electromotor, 0.37Kw, 380V, and 960 revolutions per minute, 1 set.
-External dimensions: 13600mm, 1150mm and 1523mm in length, width and height respectively (the external shape of the standard machine with 100 spindles).
|
|
|
