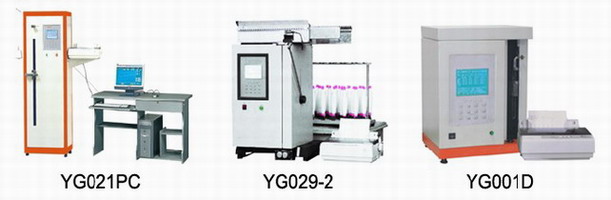

| YG029 AUTOMATIC ELECTRONIC SINGLE END YARN STRENGTH TESTER
INTRODUCTION
Automatic Electronic Single End Yarn Strength Tester, To determine the breaking load and extension of single yarns upto 5000 centi-grams force. Automatically operated with hydraulic action, provided with scales 0-500cg force and 0-5000cg force, extension scale graduated in mm and percentage of standard test length (250mm).
This Unit can grip sample for test and display, print out test result automatically.
APPLICATIONS
ISO 2062 BS 1932 ASTM D2256 DIN 53834
SPECIFICITION
(1)Load Range: 0-5000cN
(2) Load Resolution: 1/50000
(4) Load Accuracy: (<=) (+ -) 0.1% F-S
(5) Accuracy: 2%-100% Capacity of Load Cell (+ -) 0.1%
0.5%-1% Capacity of Load Cell (+ -) 0.2%
(6) Frequency of data sampling: (>=) 200Hz
(7) Speed Range: 10-1500mm/min
(8) Return Speed: 10-1500mm/min
(9) Elongation Resolution: 0.1mm
(10) Max test head travel: 250mm
(11) Efficient Length of sample: 250mm
(12) Presetting Force: 0-150cN
(13) DATA Memory: (>=) 4000 tests
(14) Instrument Size: 790 x 420 x 1000mm (L x W x H)
(15) Instrument Weight: 100kg
FEATURES:
(1) Dynamic Data Sampling More than 200HZ, capable to catch peak value, most precisely indicate property of textile material;
(2) Sharp blue LCD Panel, the operator simply selects the required test module and test standard;
(3) A graphical icon on each button clearly illustrates its current function. This greatly simplifies the screen by only showing commands relevant to the current task;
(4) Use Mitsubishi 16bit MCU, Mitsubishi 16bit A/D converter, more excellent anti-jamming, more rapid data transfer;
(5) Built-in Clock generating, and real time display time;
(6) Real time display of on-going test data (Like mean square value, average, max, min, etc)
(7) Able to preset tensile force;
(8) Force unit: N, Kgf, 1b, in, cN can be switched freely;
(9) Report, diagram are handled by computer and print out from printer;
(10) Calibration file to calibrate the unit and indicate with figure;
(11) Operator can use LCD control panel to operate the unit and print testing data without PC (bidirectional controlling);
(12) Data can be sent to excel and analysed by computer;
(13) Overlay display of data curve possible.
STANDARD CONFIG:
(1) Printer, PC;
(2) Software;
(3) Sharp blue LCD controlling panel;
(4) Precision DC servo (stepper) motor and driver.
(5) Pneumatic grip
(6) Air pump |
|
|
