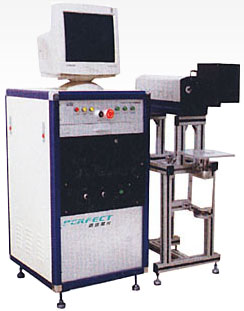

| Laser Marking/Engraving Machine (PEDB-C30) |
| Post Date :2007-07-23 |
| Expire Date :2008-07-22 |
 View Basket |
| 1 |
| Detailed Trade Lead Description |
| Performance Features:
The machine takes YAG lamp-pumped solid laser device as the light source. By 2D fast-speed scanning lens swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece
by F-θ lens to form images and realise marking and graph processing.
CO2 Laser marking machine has the advantages of high-rate of photoelectric transfer,the good quality laser beam,long time working lifespan and
exempt-maintenance.
Using fast-speed scan lens,it can be the graph in shortest time﹠finish fine marking process.
It can configure automatic configuration fixture,baiting production line.
It can mark data,series number & bar code automatically.
Available for data communications, networking
Application Scope and material:
It is used in the field of excipients clothing, machinr, packaging, building cerramics, beverage packging, tobacco packaging,fabic cutting,rubber items, nameplate casing, handicrafts&gifts,electronic components,lether and other industries.
Technical Data:
Laser Output Power: 30W
Standard Marking Scope: 110mm×110 mm
Selective Marking Scope: 70mm×70mm/175mm×175mm
Marking Depth: 0.01~0.3mm
Marking Speed: 7000mm/second
Repeated Accuracy: 0.01mm
Laser Wavelength: 1064um
Minimum Line Width: 0.015mm
Power Supply: 380V/50HZ
Machine Power: 2KW
Dimension:
Mainframe: 240mm×1280mm×1200mm (L×W×H)
Controlling Cabinet: 590mm×560mm×800mm(L×W×H)
Water-Cooling Machine: 540mm×700mm×900mm (L×W×H)
|
|
|
| |
