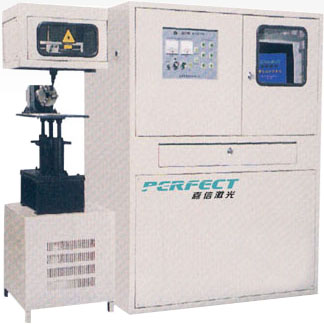

| Laser Marking/Engraving Machine (PEDB-250) |
| Post Date :2007-07-23 |
| Expire Date :2008-07-22 |
 View Basket |
| 1 |
| Detailed Trade Lead Description |
| Performance Features:
The machine takes YAG lamp-pumped solid laser device as the light source.
By 2D fast-speed scanning lens swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece
by F-θ lens to form images and realise marking and graph processing.
YAG laser marking machine is the most widerly used,the Optimal
cost-effectiveness and the stablest quality machine at present
By adding rotation controling system,it can mark on the cylinderical and conical work piece.
Having large marking scope by applying the way of X-Y axis scanning.
Compare to galvanometer laser marking machine, PEDB-250 Laser Marking Machine could make deeper marks.
With moderate cost, PEDB-250 Laser Marking Machine can be applied on
work-piece with small-scale output.
It can mark date & serials number automatically.
Available for data communications, networking
Application Scope and material:
Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights,etc.,
Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment ,etc.,
Instrument: Panel signs nameplates,precision equipment ,etc.,
Hardware Tools : Knives, tools, etc.,
Technical Data:
Max Output Power: 50W
Marking Scope: 300mm×200 mm; (or customized)
Marking Depth: 0.01~0.3mm
Marking Speed: ≤30mm/second;
Repeated Accuracy: 0.01mm
Minimum Line Width: 0.2mm
Powersupply: 380V/50HZ
Machine Power: 2KW
Dimension:
Mainframe: 1560mm×700mm×1220mm (L×W×H)
Water-cooling Machine: 540mm×700mm×900mm (L×W×H)
|
|
|
