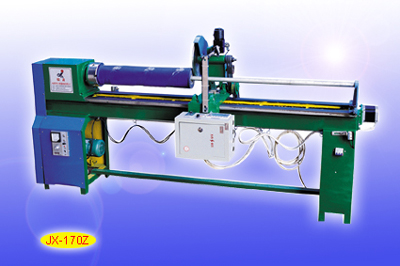

| JX-170Z Automatic Single-Knife Strip Cutting Machine |
| Post Date :2007-10-05 |
| Expire Date :2006-12-16 |
 View Basket |
| FOB Xiamen, China |
| Detailed Trade Lead Description |
| Functions:
Suitable for cutting vertical and 45-degree bias straps of different widths of cloth, leather, adhesive-bonded fabric, foam, cladding, paper, and reflectorized material, etc.;
Suitable for industries like textile & garment, footwear & leather, bags, home textiles, and so forth.
Specifications:
Maximum cloth width: 1700mm;
Rotating speed of cloth roll: 0~800rpm;
Diameter of cloth roll: 38~270mm;
Power: 2.5kw;
Minimum width of cut strap: 2mm;
Voltage:380v/50hz;
Machine measurements: 2700mm x 750mm x 1400mm.
Equipment characteristics:
1. The power of chief axis and round knife uses stepless speed regulating system and frequency converter system, so they can be controlled to regulate speed and change forward and reversal rotation to achieve the best cutting quality.
2. Accurately step-by-step system is used to control the cutting width with precision ball-screw and sliding rail, so precise cutting can be achieved.
3. AC motor speed regulating system is used to directly control the cutting feed power and speed to achieve high-quality strap cutting.
4. The operation interface uses LCD English/Chinese display screen, and the cutting width, quantity and action set can be directly entered. Mitsubishi PLC programmable controller is used to achieve automatic cutting. |
|
|
| |
