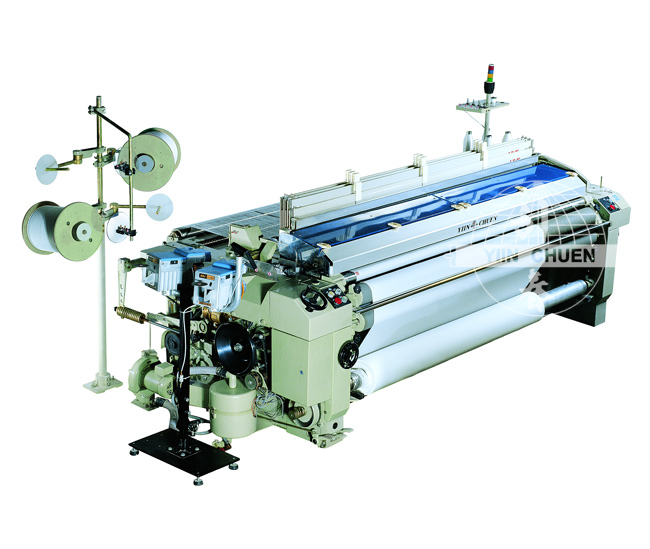

| Two Nozzle Plain Shedding Water-Jet Loom |
| Detailed Trade Lead Description |
| The JW-852CH is a new model mainly used for weaving high twisted yarn, spandex wrapped yarn and other similar yarns. With outstanding stability and high-speed working, it outputs high-density fabric
Product Name: Water Jet Loom (JW-852ch, Yiinchuen Brand)
Model Number: JW-852CH
Place of Origin: China
Two pump system, tappet shedding device or dobby shedding device can be installed
on this water jet loom.
Specifications:
1) Reed width: 170, 190, 210, 230, 250, 280, 320, 350cm
2) Filling insertion rate: 2,280m/min max.
3) Head frame:
a) Tappet shedding: 2, 4, 6, 8, 10pcs max.
b) Dobby shedding: 16pcs max.
4) Power: 2.5, 3.5, 4.6kW
5) Weft density: 5 ~ 60picks/cm
6) Rotational speed: 1,200rpm max.
Yarn:
1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament
9) O.P. yarn
10) Taslon yarn
|
|
|
| |
