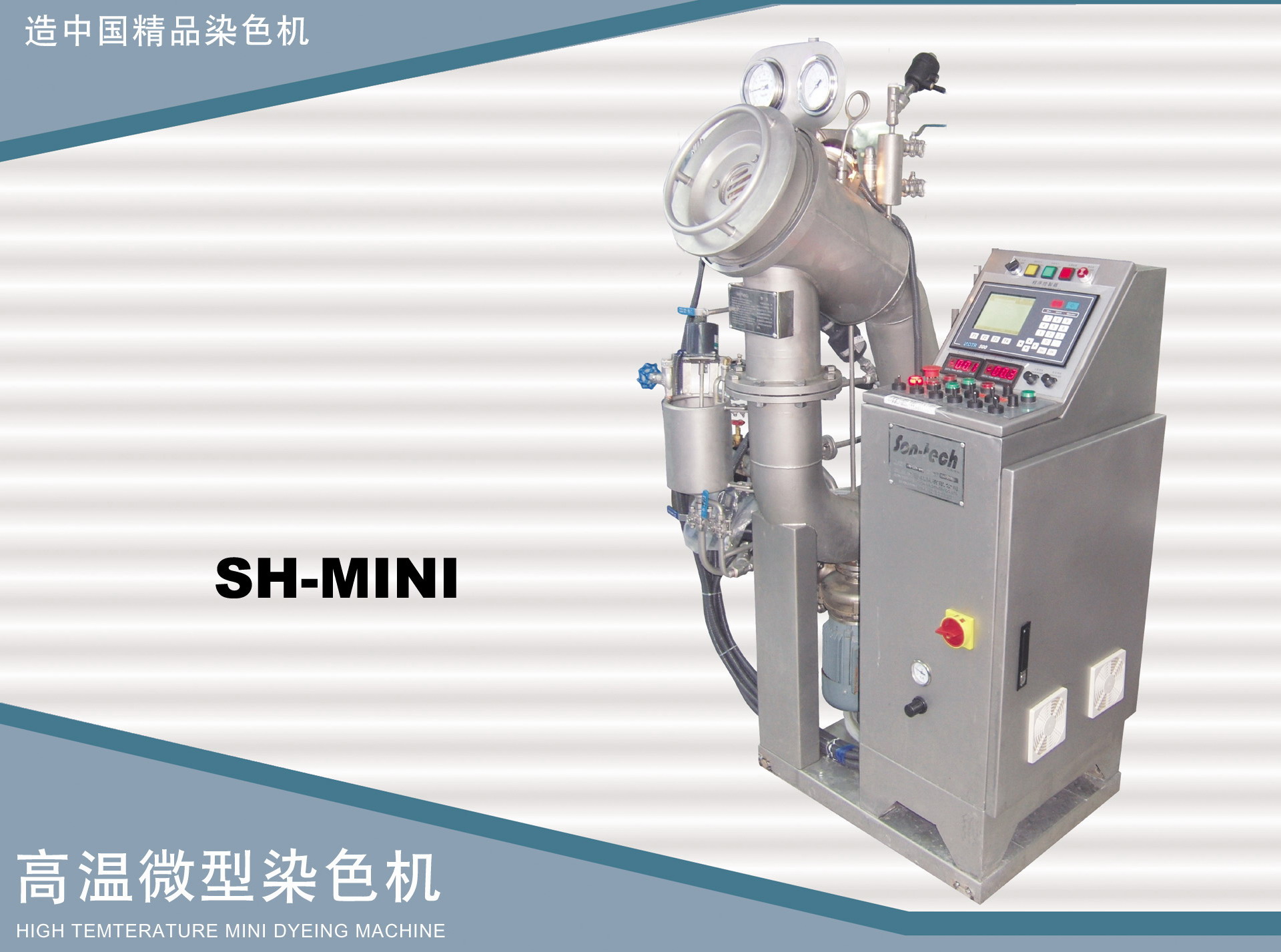

| High Temperature Mini Dyeing Machine (SH-MINI-2.5KG) |
| Post Date :2006-12-29 |
| Expire Date :2007-12-29 |
 View Basket |
| SH-MINI-2.5KG |
| Detailed Trade Lead Description |
| SH-MINI-Series High Temperature Mini Dyeing Machine
Model: SH-MINI-2.5KG
Liquor ratio: 1：7-8
Fabric speed〈Max.〉 16M/min
Capacity: 〈Max.〉 3kg
Basic machine price, including:
Machine body and parts wetted by dyeing liquid are made of SUS316/SUS316L.
Machine body, pipe system, Machine body consist of Teflon fabric delivery tube, Teflon cloth chamber.
Round nozzle, nozzle size: DN 80mm
Lifter reel device with frequency inverter, (driving motor JIE：1.5HP, frequency inverter E540-1.5KW-CH, Mitsubishi Japan)
Dyeing liquid separator & collection system
Heat exchanger, German BURKET2072 valve and 1067 proportional controller, PID temperature control valve (DN15)
Rinsing system controlled by controller
Heavy duty stainless steel centrifugal pump (1.5KW) with driving motor / frequency inverter E540-1.5KW-CH, Mitsubishi Japan)
Programmable filling（DN15）、draining（DN15）
Specially designed water storage vat (and main vat 1:1)
Service tank:
Analogical service tank (ST1000)
Pneumatic valve, flow-return controlling
On/off feeding valve
Manual direct steam heating valve
Stainless steel control cabinet with ower actuated control parts including:
Dyeing machine’s controller (DTR636dx) imported from other country, this controller is linked with PLC system.
Control panel which is imported from other country
Pneumatic control panel （AIRTAC,TAIWAN）
Heat exchanger
Temperature of dyeing liquor in the cylinder is controlled by modulating valve, On/off pneumatic control valve, steam trap and heat exchanger.
Heating radio：25℃—95℃ average ：3.6ºC/min（saturated steam 7kg/cm）
Cooling ratio：95℃—85℃ average：2℃/min（water pressure 3kg/cm 25℃）
2 sets of filters for Heat exchanger (one for spare)
|
|
|
| |
