| GA799-III Rapier Loom |
| Post Date :2008-08-24 |
| Expire Date :2009-03-21 |
 View Basket |
| with pick-finding device |
| Detailed Trade Lead Description |

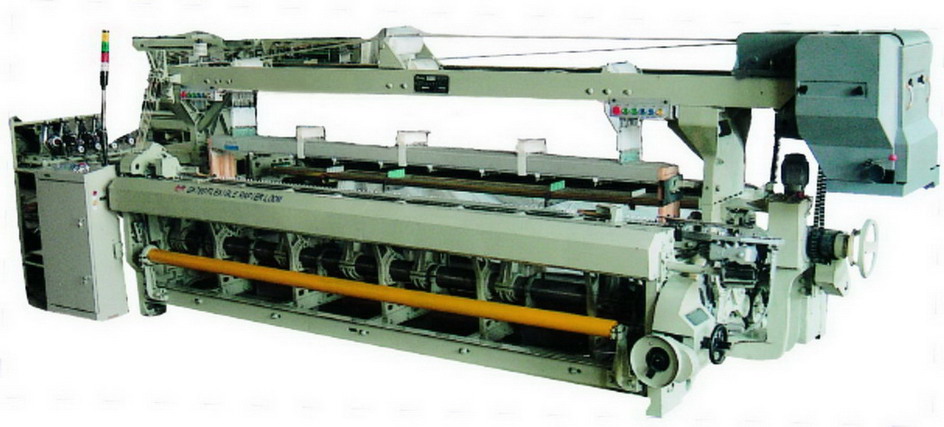

| Product: GA799-III Rapier Loom
The product has patented .the loom is suitable chiefly to weave the fabrics made of national fiber (such as cotton, wool, flax, linen etc), synthetic fiber, blended yarns, decorative yarn, chenille yarn, bulrush.PP bulrush, it is capable of weaving light, middle-thick, and thick fbrics,and the bulrush artware.
GA799-III Flexible Rapier Loom the Product has Patented Technical Specification
Metric reed width (cm) 190,200,210,230,250,280,330,360
Speed: 280-160r/pm
Yarn range: Cotton 7Ne-60Ne Wool 12 Nm-100Nm Man-made fiber 750D-30D
Power: 2.6K weaving machine special motor
Shedding: Upper mechanical dobby, spring reversing motion Maximum 8-16 shafts heald frame
Weft insertion form: 6-Composite movement of four linkages with small eccentric, central transfer weft insertion
Beating-up motion: 4-linkages short-crank beating-up
Warp let-off motion: Adopting friction infinitely variable speeds type let-off, warp beam flange diameter 680mm, flanges distance adjusted with screw type
Take up and rolling-up: Adopting continuous taking-up and separate rolling-up, Full rolling diameter 450mm
Warp stop: 6 row electric warp stop
Weft stop: Piezoelectricity model sensor control weft stop
Color-selector: Controlled by dobby, maximally 6 colors for selecting weft
Selvage device: Leno selvage
Running operation: Gauze switches are provided at two sides of machine, controllable, inching, single pick insertion, start, position stop, emergency stop, with automatic inverse running, normal and reverse rotation.
Electric control: Micro-processing mechanism is adopted to control magnetic clutch, adsorption and release of brake and normal and reverse operation of inverse running.
|
|
|
