| Flat And Chenille Chain Computerized Embroidery Machine(BLMJX-M606+P906) |
| Post Date :2008-04-25 |
| Expire Date :2009-04-03 |
 View Basket |
| BLMJX-M606+P906 |
| Detailed Trade Lead Description |

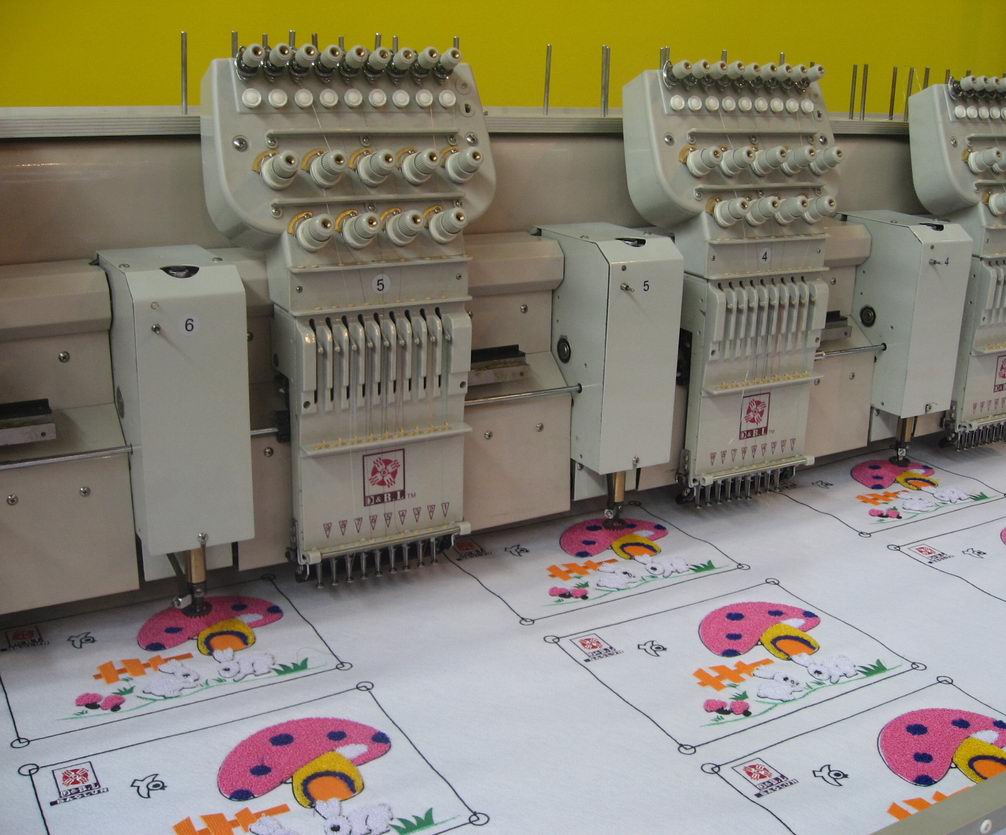

| Flat And Chenille Chain Computerized Embroidery Machine(BLMJX-M606+P906)
Machin models and specifications
Model Flat Heads Flat Needles Towel Heads TowelNeedles Embroidery Area(mm) Dimension (mm)(LxWxH)
HeadDistanc(mm)
BLMJX-M606+P906 6 9 6 6 450×750 4965×2050×1600 450
BLMJX-M608+P908 8 9 8 6 450×750 5420×2050×1600 450
BLMJX-M610+P910 10 9 10 6 450×750 6300×2050×1600 450
BLMJX-M612+P912 12 9 12 6 450×750 7200×2050×1600 450
BLMJX-M612 0 0 12 6 450×750 6315×2050×1600 450
BLMJX-M610+PJ910 10 9 10 6 450×750 6300×2050×1600 450
For above models we can customize 1(one) needle for towel heads,6(six) needles for flat heads,Y-axis 680mm.If adopt wooden package,the length and width of package size increase 300mm respectively based on machine size.Distance from flat head to towel head is 230mm;
Distance from towel head to flat head is 220mm
Technology Parameter
Name Flat And Towel Chain Computerized Embroidery Machine
Application Range Applied to baby clothing,Handbags,Garments,Emblem,gifts,crafts etc broadly.
Electric Controlling System Dahao109 computerized controlling system,5 inches color LCD monitor.
Memory Capacity 1000,000 stitches,99 patterns.
Memory Format Read files in Tajima(DST),Barudan,ZSK,Binary system,Ternary system format.
Imput USB port and 3.5 inches floppy disk that both can be compatible.
Trimming System Automatic trimming system.
Rotary Hook Japanese original bobbin,bobbin case.
Driving Reinforced linear guide rail driving design.
Head Digitalized head device with large guide plate saving adjusting to be horizontal manually.
Color changing Automatic color changing device.
Sewing speed Flat head:250~850rpms; Towel head:250~650rpms.
Motor Main shaft of flat heads: Servo motor 1.0KW
Power Consumption 2.5KW 50～60HZ.
Voltage Three phase 380V,Single phase 220V,Single phase110V for options.
|
|
|
| |
