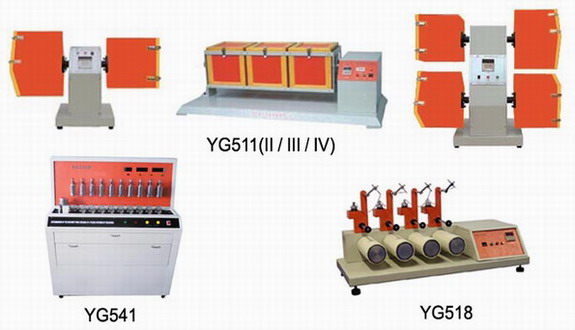

| YG541D FULLY AUTOMATIC CREASE RECOVERY TESTER
INTRODUCTION
Crease Recovery Tester & Loading Device. To determine recovery properties of fabrics by creasing in a loading device for a predetermined time using a weight suitable for the test method specified (BS, ISO, AATCC). After transferring the specimen to the clamp of the tester, the specimen is allowed to recover and the angle of recovery recorded.
APPLICATIONS
ISO 2313 AATCC66/67
SPECIFICITION
(1) Working model: PC control, digital display, print out result
(2) Measuring time: fast recovery: 15 (+ -) 1s
slow recovery:5min (+ -) 5s
(3) Load: 10 (+ -) 0.05N
(4) Pressure time: 5min (+ -) 5s
(5) Bearing area: 18 x 15mm
(6) Accuracy of angle of recovery:
37-167degree (+ -) 1degree
(7) Device of measuring angle: photoelectricity testing head
(8) Working position: 10 position
(9) Instrument Size: 1100 x 500 x 1150mm (L x W x H)
(10) Instrument Weight: 85kg
FEATURES
(1) MCU control uni, auto reading function, avoid human error;
(2) LCD display results, forward and reverse, low/high speed, longitude and latitude, and other items testing results. And print out with accessories printer.
(3) Synchronized motion between motor and gear, high precise guiding pole, make unit work smoothly and consistent;
(4) Use photoelectricity testing head to measure angle, resolution capacity of angle (+ -) 0.1 degree |
|
|
| |
